MV/LV O/H Line Materials EAC Spec 1-003 Eye Bolt

Note :

  • All steel members including nuts to be hot dip galvanised to latest EN ISO 1461

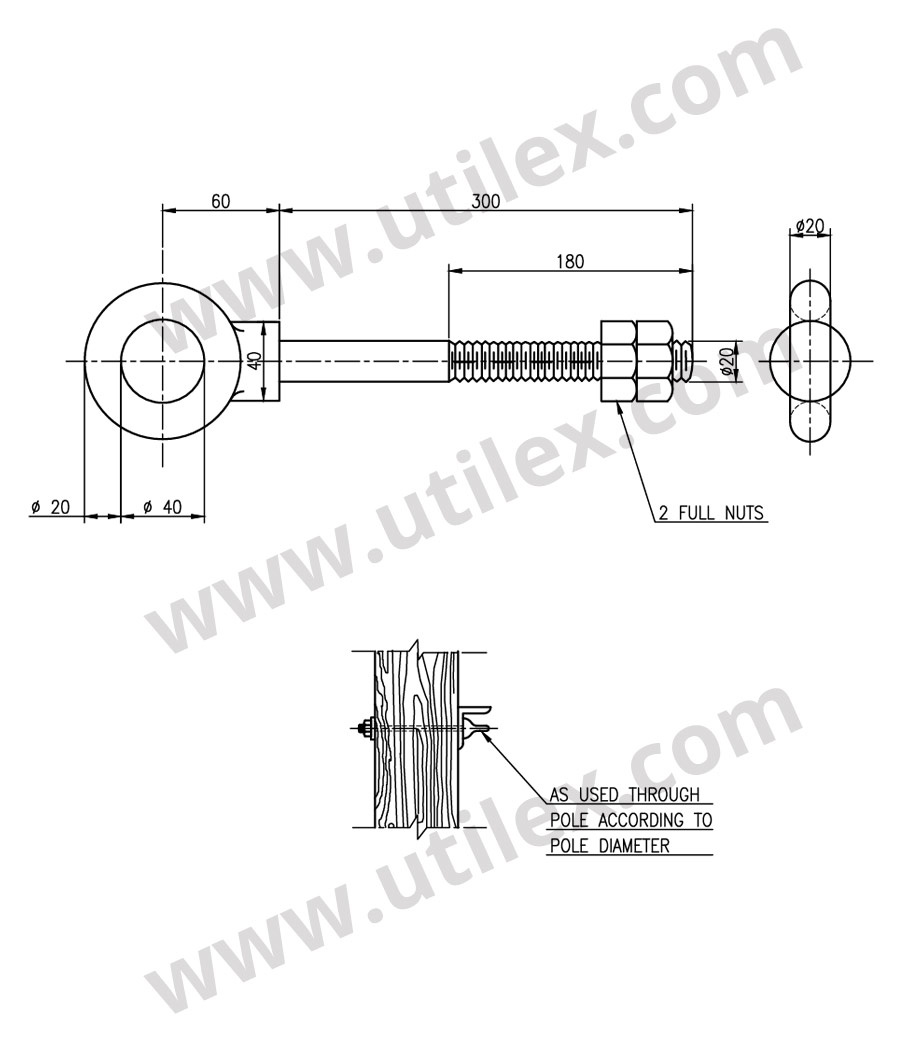

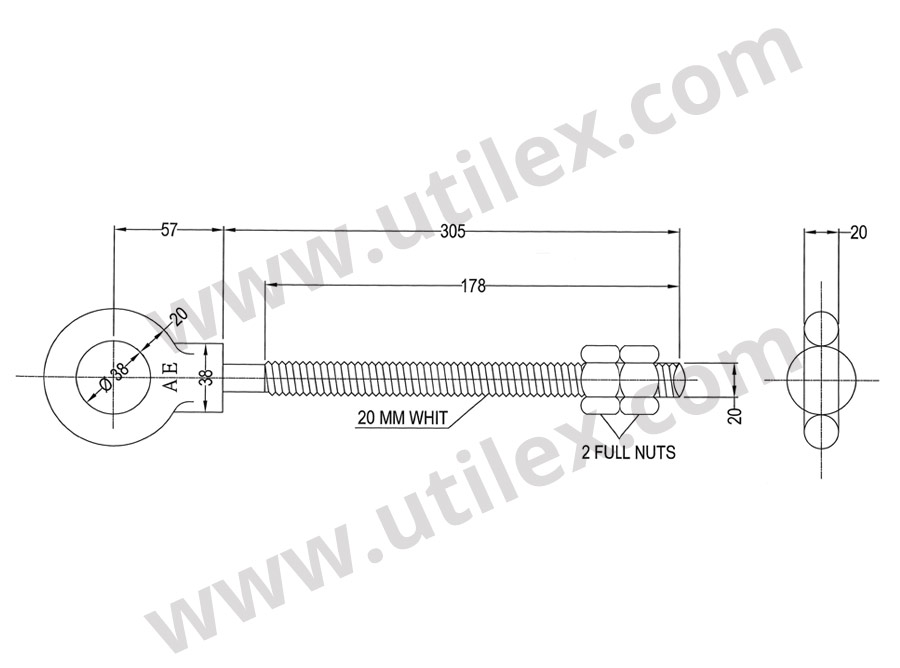

M20 X 305 mm Eye Bolt

Sl. No. Desc. Qty. Material Surface Treatment
1 MS 20 x 305 mm Eye Bolt 1 M.S. Forged Steel H.D.G.
2 M20 Nut 2 M.S. Forged Steel H.D.G.

Note :

  • All dimensions are in mm otherwise specified

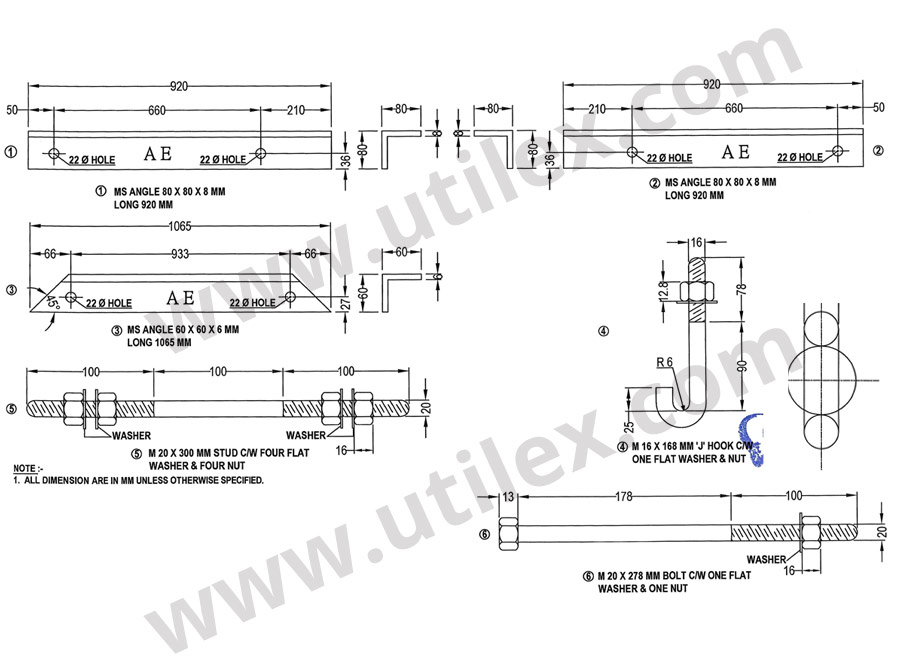

Single Pole Transformer Crossarm

Sl. No. Desc. Qty. Material Surface Treatment
1 MS Angle 80 x 80 x 8 mm Long 920 mm 1 M.S. Angle H.D.G.
2 MS Angle 80 x 80 x 8 mm Long 920 mm 1 M.S. Angle H.D.G.
3 MS Angle 60 x 60 x 6 mm Long 1065 mm 2 M.S. Angle H.D.G.
4 MS 16 x 168 mm ‘J’ Hook C/W One Flat Washer & Nut 4 M.S. Forged Steel H.D.G.
5 MS 20 x 300 mm Stud C/W Four Flat Washer & Four Nut 1 M.S. Round H.D.G.
6 MS 20 x 278 mm Bolt C/W One Flat Washer & One Nut 2 M.S. Forged Steel H.D.G.



Note :

  • All dimensions are in mm unless otherwise specified

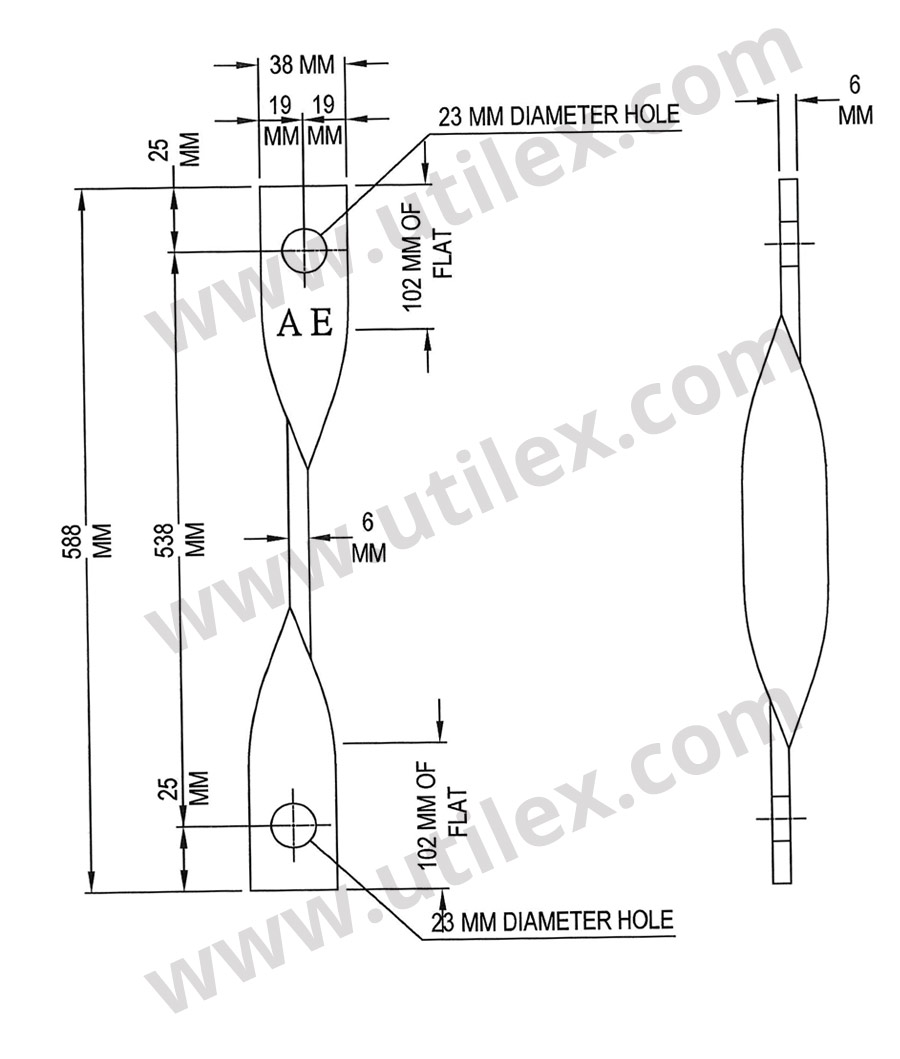

Tie Strap

Sl. No. Desc. Qty. Material Surface Treatment
1 MS Flat Size 38 x 6 x 588 mm 1 M.S. Flat H.D.G.

Note :

  • All dimensions are in mm unless otherwise specified.

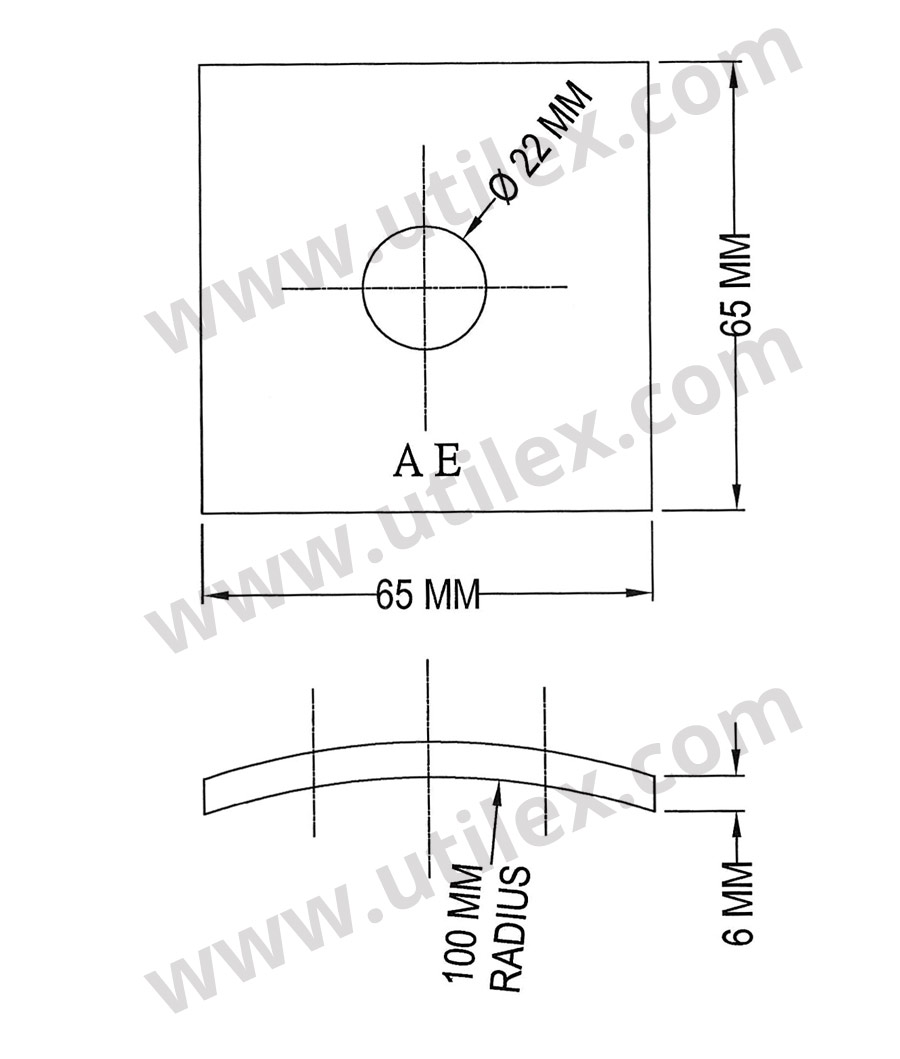

Curved Washer 65 X 65 X 6 mm

Sl. No. Desc. Qty. Material Surface Treatment
1 Curved Washer 65 x 65 x 6 mm 1 M.S. Flat H.D.G.

Note :

  • All dimensions are in mm unless otherwise specified.

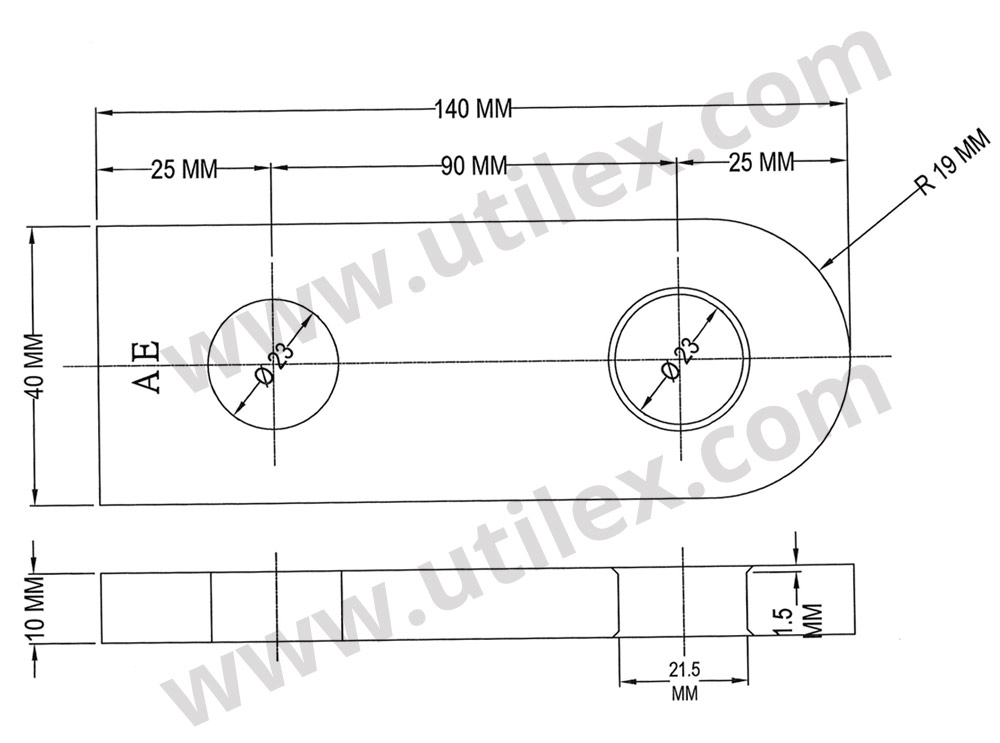

Terminating Strap 140 X 10 X 40

Sl. No. Desc. Qty. Material Surface Treatment
1 Terminating Strap Size 140 x 10 x 40 mm M.S. Flat H.D.G.

Note :

  • All dimensions are in mm unless otherwise specified.

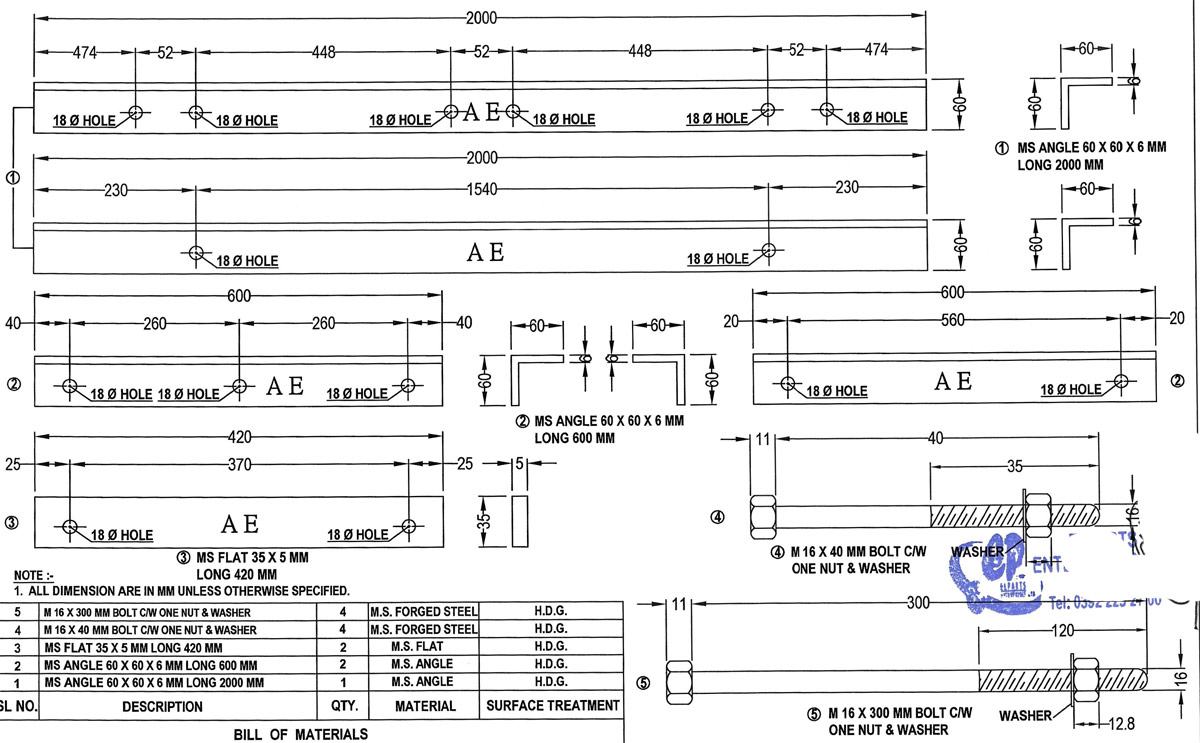

Double Pole Do Fuse Crossarm

Sl. No. Desc. Qty. Material Surface Treatment
1 MS Angle 60 x 60 x 6 mm Long 2000 mm 1 M.S. Angle H.D.G.
2 MS Angle 60 x 60 x 6 mm Long 600 mm 2 M.S. Angle H.D.G.
3 MS Flat 35 x 5 mm Long 420 mm 2 M.S. Flat H.D.G.
4 M 16 x 40 mm Bolt C/W One Nut & Washer 4 M.S. Forged Steel H.D.G.
5 M 16 x 300 mm Bolt C/W One Nut & Washer 4 M.S. Forged Steel H.D.G.

Note :

  • All dimensions are in mm unless otherwise specified.

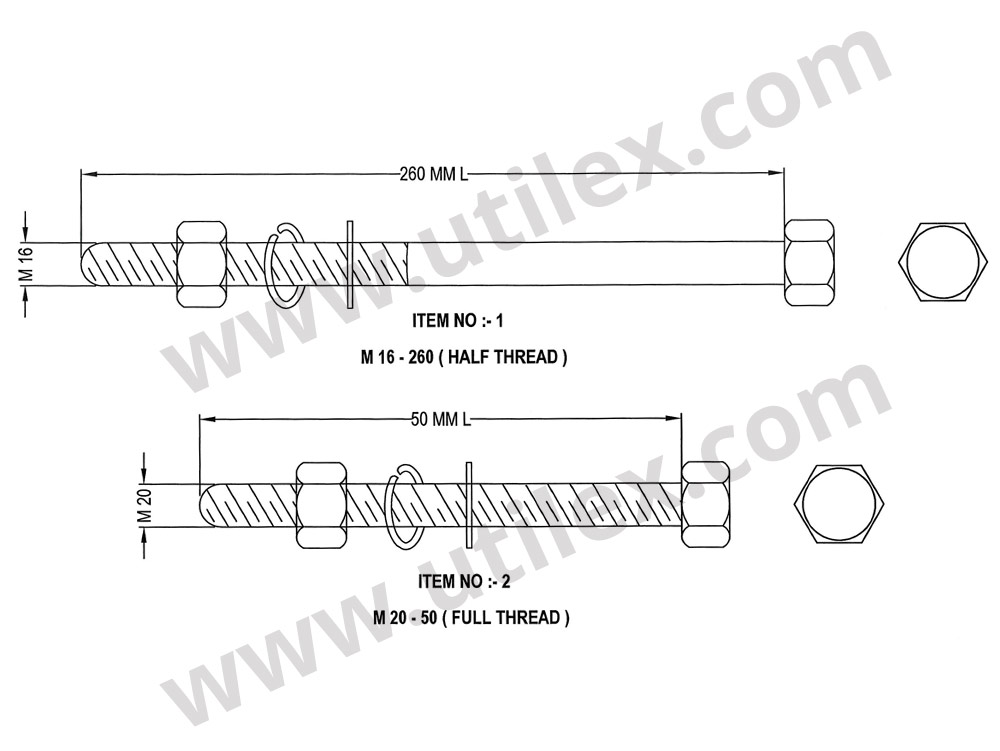

Bolts & Nuts

Item No. 1

Sl. No. Desc. Qty. Material Surface Treatment
1 M 16 x 260 mm Bolt 1 M.S. Forged Steel H.D.G.
2 M 16 Nut 1 M.S. Forged Steel H.D.G.
3 MS 16 Flat Washer 1 M.S. Plate H.D.G.
4 M 16 Spring Washer 1 M.S. Spring Steel H.D.G.

Item No. 2

Sl. No. Desc. Qty. Material Surface Treatment
1 M 20 x 50 mm Bolt 1 M.S. Forged Steel H.D.G.
2 M 20 Nut 1 M.S. Forged Steel H.D.G.
3 MS 20 Flat Washer 1 M.S. Plate H.D.G.
4 M 20 Spring Washer 1 M.S. Spring Steel H.D.G.

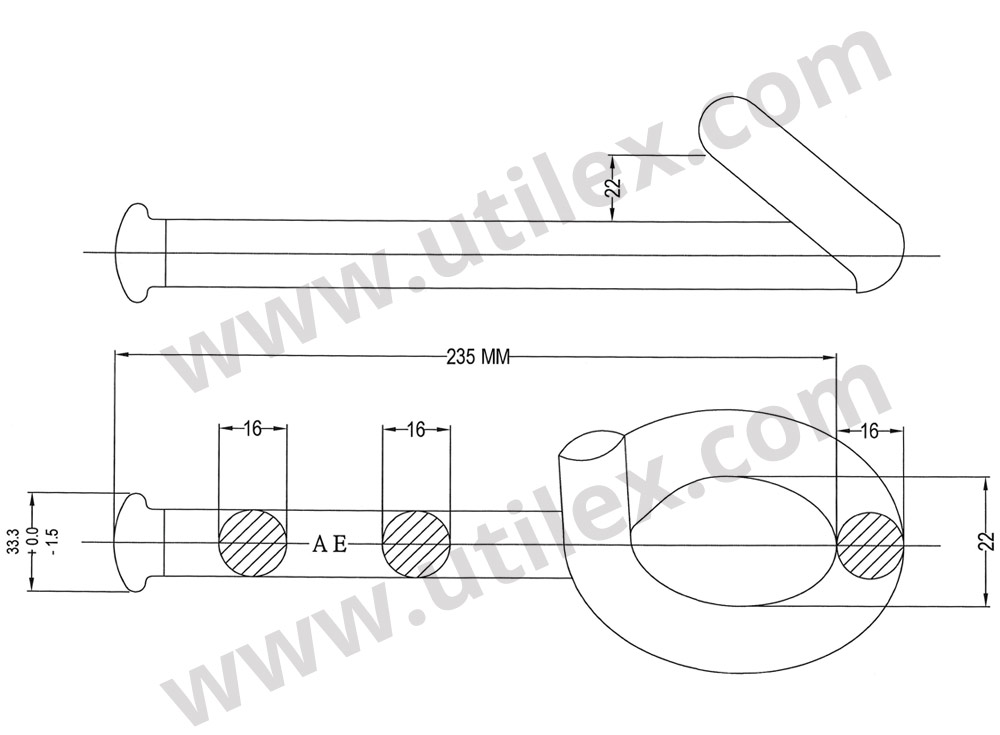

Insulator Hook (Pig Tail Hook)

Sl. No. Desc. Qty. Material Surface Treatment
1 Insulator Hook 16 x 235 mm 1 M.S. Forged Steel H.D.G.

Note :

  • All dimensions are in mm unless otherwise mentioned.

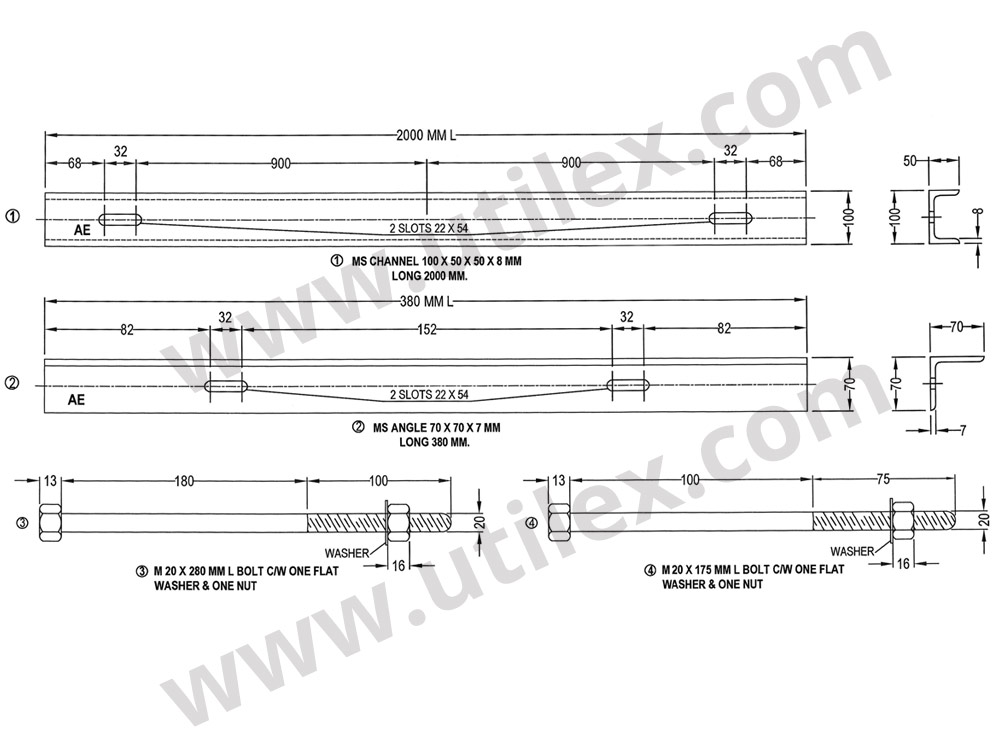

H- Type Transformer Crossarm Set

Sl. No. Desc. Qty. Material Surface Treatment
1 MS Channel 100 x 50 x 50 x 8 mm Long 2000 MM 2 M.S. Channel H.D.G.
2 MS Angle 70 x 70 x 7 mm Long 380 MM 2 M.S. Angle H.D.G.
3 M 20 x 280 mm L Bolt, Nut & Washer 2 M.S. Bolt H.D.G.
4 M 20 x 175 mm L Bolt, Nut & Washer 4 M.S. Bolt H.D.G.

Note :

  • All dimensions are in mm unless otherwise mentioned.

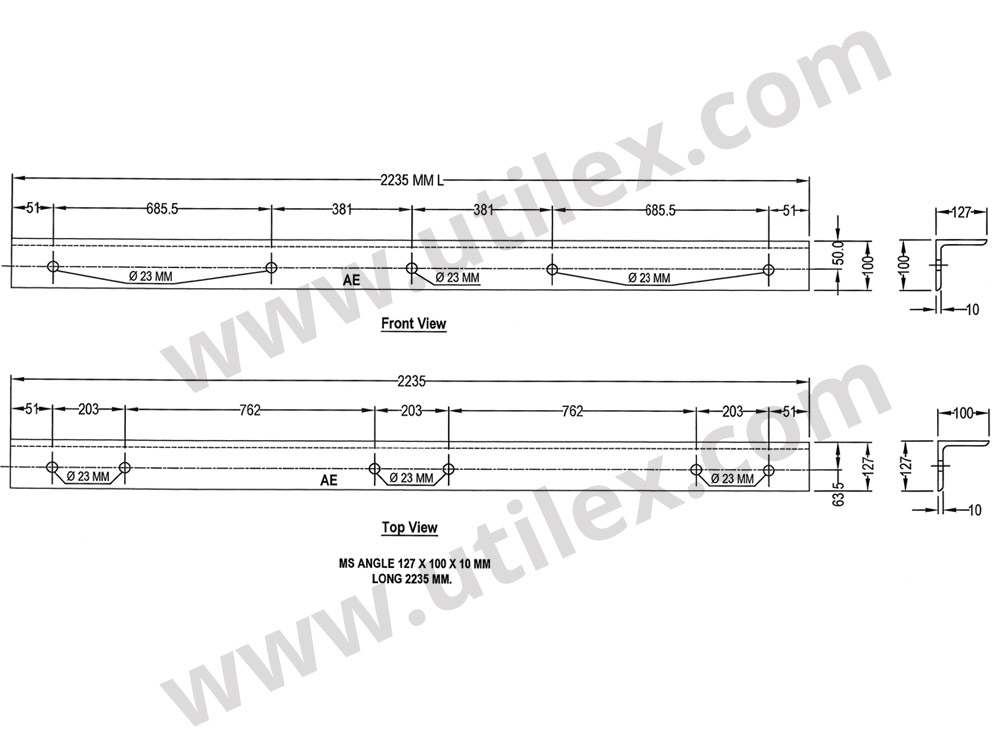

7’4″ Crossarm (Terminal)

Sl. No. Desc. Qty. Material Surface Treatment
1 MS Angle 127 x 100 x 10 mm Long 2235 mm 1 M.S. Channel H.D.G.

Note :

  • All dimensions are in mm unless otherwise mentioned.

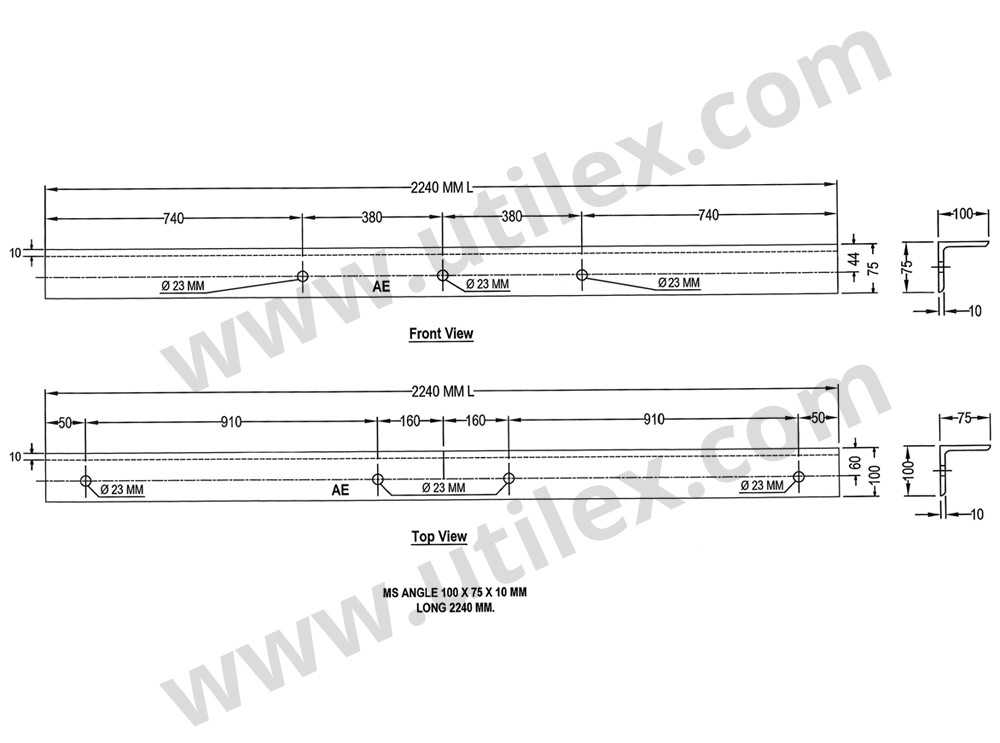

7’4″ Crossarm

Sl. No. Desc. Qty. Material Surface Treatment
1 MS Angle 100 x 75 x 10 mm Long 2240 mm – M.S. Angle H.D.G.

Note :

  • All dimensions are in mm unless otherwise mentioned.

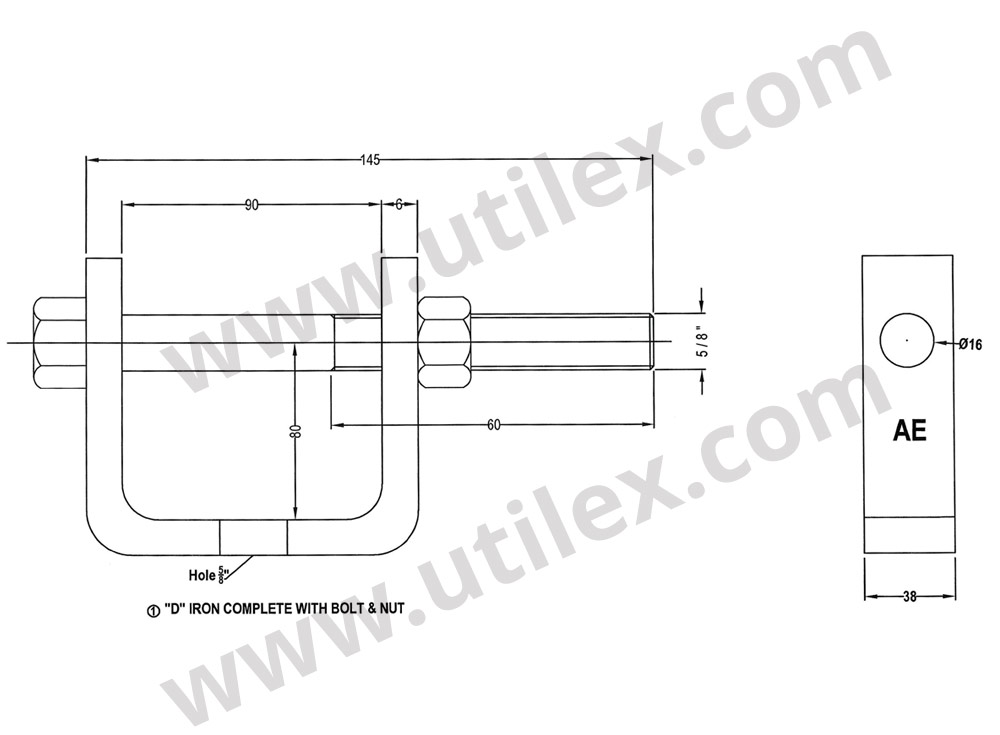

“D” Iron Complete with Bolt & Nut

Sl. No. Desc. Qty. Material Surface Treatment
1 “D” Iron Complete with Bolt & Nut – M.S. H.D.G.

Note :

  • All dimensions are in mm unless otherwise mentioned.

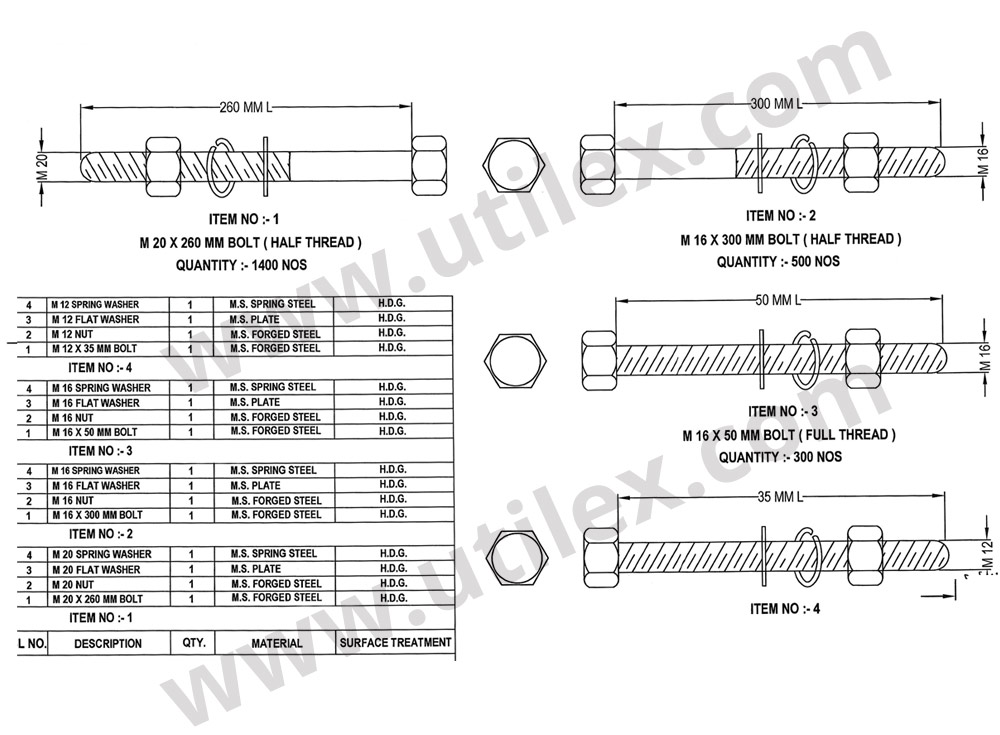

Bolts & Nuts

Item No. 1

Sl. No. Desc. Qty. Material Surface Treatment
1 M 20 x 260 mm Bolt 1 M.S. Forged Steel H.D.G.
2 M 20 Nut 1 M.S. Forged Steel H.D.G.
3 M 20 Flat Washer 1 M.S. Plate H.D.G.
4 M 20 Spring Washer 1 M.S. Spring Steel H.D.G.

Item No. 2

Sl. No. Desc. Qty. Material Surface Treatment
1 M 16 x 300 mm Bolt 1 M.S. Forged Steel H.D.G.
2 M 16 Nut 1 M.S. Forged Steel H.D.G.
3 M 16 Flat Washer 1 M.S. Plate H.D.G.
4 M 16 Spring Washer 1 M.S. Spring Steel H.D.G.

Item No. 3

Sl. No. Desc. Qty. Material Surface Treatment
1 M 16 x 50 mm Bolt 1 M.S. Forged Steel H.D.G.
2 M 16 Nut 1 M.S. Forged Steel H.D.G.
3 M 16 Flat Washer 1 M.S. Plate H.D.G.
4 M 16 Spring Washer 1 M.S. Spring Steel H.D.G.

Item No. 4

Sl. No. Desc. Qty. Material Surface Treatment
1 M 12 x 35 mm Bolt 1 M.S. Forged Steel H.D.G.
2 M 12 Nut 1 M.S. Forged Steel H.D.G.
3 M 12 Flat Washer 1 M.S. Plate H.D.G.
4 M 12 Spring Washer 1 M.S. Spring Steel H.D.G.
